MUR110S, MUR105S, Surface Mount Ultrafast Power Rectifiers

MUR105S * MUR160S Taiwan Semiconductor 1A, 50V - 600V Ultra Fast Surface Mount Rectifier .
only.

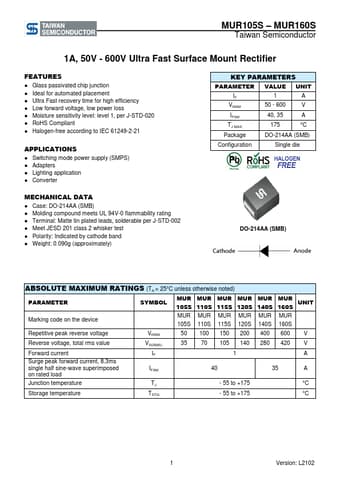

datasheet Preview Page 1 from Datasheet4u.com

MUR105S-TaiwanSemiconductor.pdf

MUR110S Datasheet Preview — This datasheet PDF includes multiple part numbers: MUR110S, MUR105S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MUR110S, MUR105S

Manufacturer:

Taiwan Semiconductor

File Size:

421.67 KB

Description:

Surface Mount Ultrafast Power Rectifiers

Note:

This datasheet PDF includes multiple part numbers: MUR110S, MUR105S.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip junction
* Ideal for automated placement
* Ultra Fast recovery time for high efficiency
* Low forward voltage, low power loss
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant
* Halogen-free according to IEC 61249-2-21 APPLICATI

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* Converter KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 1 A 50 - 600 V IFSM 40, 35 A TJ MAX 175 °C Package DO-214AA (SMB) Configuration Single die MECHANICAL DATA
* Case: DO-214AA (SMB)
