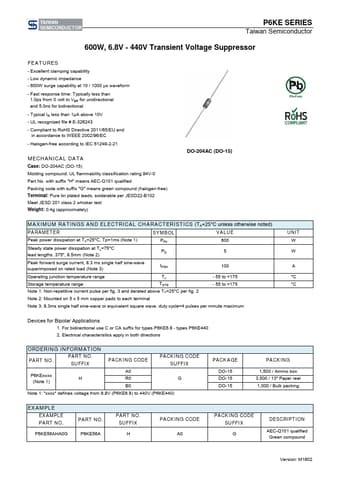

P6KE9.1A Overview
Key Specifications
Pins: 2
Max Operating Temp: 175 °C
Min Operating Temp: -55 °C
Key Features
- Excellent clamping capability
- Low dynamic impedance
- 600W surge capability at 10 / 1000 μs waveform
- Fast response time: Typically less than 1.0ps from 0 volt to VBR for unidirectional and 5.0ns for bidirectional
- Typical IR less than 1μA above 10V
- UL recognized file # E-326243 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC
