P6SMB6.8 - Surface Mount Transient Voltage Suppressor

P6SMB6.8 Description

P6SMB6.8(A) - P6SMB220(A) Taiwan Semiconductor 600W, 6.8V - 220V Surface Mount Transient Voltage Suppressor .

P6SMB6.8 Features

* FEATURES
* Low profile package
* Ideal for automated placement
* Glass passivated junction
* Built-in strain relief
* Excellent clamping capability
* Typical IR less than 1μA above 10V
* Fast response time: Typically less than 1.0ps from 0 volt to BV min
* Compliant t

P6SMB6.8 Applications

* Switching mode power supply (SMPS)
* Adapters
* TV
* Monitor MECHANICAL DATA
* Case: DO-214AA (SMB)
* Molding compound meets UL 94V-0 flammability rating
* Moisture sensitivity level: level 1, per J-STD-020
* Part no. with suffix "H" means AEC-Q101 qualified

📥 Download Datasheet

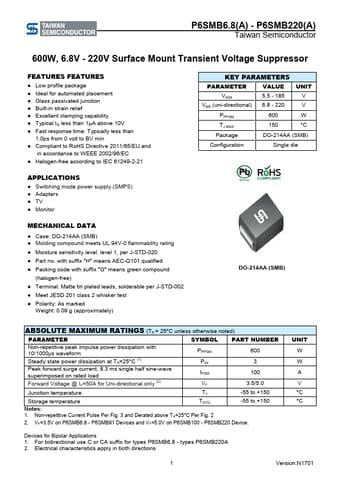

Preview of P6SMB6.8 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P6SMB6.8
Manufacturer
Taiwan Semiconductor
File Size
467.42 KB
Datasheet
P6SMB6.8-TaiwanSemiconductor.pdf
Description
Surface Mount Transient Voltage Suppressor
