RS1DFS - 200V - 1000V Surface Mount Fast Recovery Rectifier

RS1DFS Description

RS1DFS - RS1MFS Taiwan Semiconductor 1A, 200V - 1000V Surface Mount Fast Recovery Rectifier .

RS1DFS Features

* Glass passivated junction chip
* Ideal for automated placement
* Low profile package
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC

RS1DFS Applications

* High frequency rectification
* Freewheeling application
* Switching mode converters and inverters in computer,automotive and telecommunication MECHANICAL DATA
* Case: SOD-128
* Molding compound meets UL 94V-0 flammability rating
* Part no. with suffix "H" means AEC-Q101 qua

📥 Download Datasheet

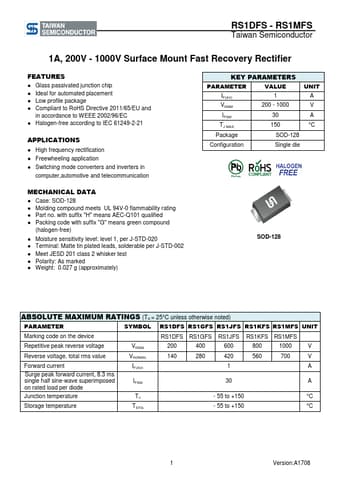

Preview of RS1DFS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS1DFS
Manufacturer
Taiwan Semiconductor
File Size
274.33 KB
Datasheet
RS1DFS-TaiwanSemiconductor.pdf
Description
200V - 1000V Surface Mount Fast Recovery Rectifier
