RS2M, RS2A Surface Mount Fast Recovery Rectifiers

RS2M Description

RS2A - RS2M Taiwan Semiconductor 2A, 50V - 1000V Surface Mount Fast Recovery Rectifiers .

RS2M Features

* Low power loss, high efficiency
* Ideal for automated placement
* Glass passivated junction chip
* Fast switching for high efficiency
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC

RS2M Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* Converter KEY PARAMETERS PARAMETER IF(AV) VRRM IFSM TJ MAX Package VALUE 2 UNIT A 50 - 1000 V 50 A 150 °C DO-214AA (SMB) Configuration Single Die MECHANICAL DATA
* Case: DO-214AA (SMB)
* Mold

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS2M, RS2A. Please refer to the document for exact specifications by model.

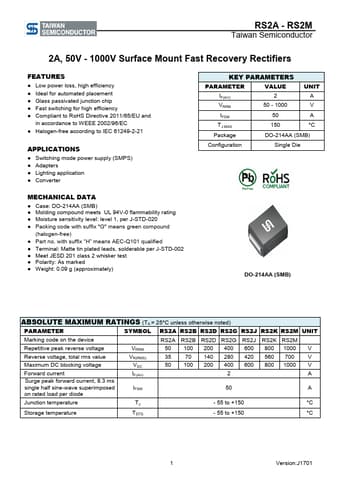

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS2M, RS2A
Manufacturer
Taiwan Semiconductor
File Size
560.85 KB
Datasheet
RS2A-TaiwanSemiconductor.pdf
Description
Surface Mount Fast Recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: RS2M, RS2A.
Please refer to the document for exact specifications by model.
