RS3DB-T, 200V - 1000V Fast Recovery Surface Mount Rectifier

RS3DB-T * RS3MB-T Taiwan Semiconductor 3A, 200V - 1000V Fast Recovery Surface Mount Rectifier .

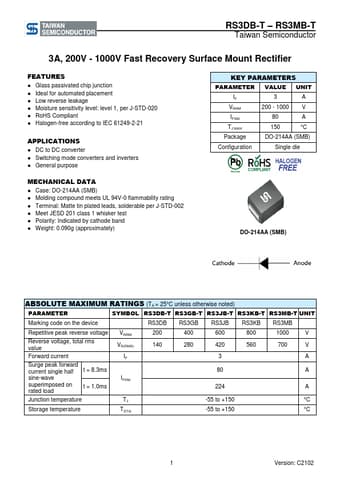

datasheet Preview Page 1 from Datasheet4u.com

RS3DB-T-TaiwanSemiconductor.pdf

RS3DB-T Datasheet Preview — Preview of RS3DB-T PDF

Datasheet Details

Part number:

RS3DB-T

Manufacturer:

Taiwan Semiconductor

File Size:

474.10 KB

Description:

200V - 1000V Fast Recovery Surface Mount Rectifier

Features

* Glass passivated chip junction
* Ideal for automated placement
* Low reverse leakage
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant

Applications

* DC to DC converter
* Switching mode converters and inverters
* General purpose KEY PARAMETERS PARAMETER VALUE UNIT IF 3 A VRRM 200 - 1000 V IFSM 80 A TJ MAX 150 °C Package DO-214AA (SMB) Configuration Single die MECHANICAL DATA
* Case: DO-214AA (SMB)
* Molding
