S2A, Surface Mount Rectifier

S2A - S2V Taiwan Semiconductor 2A, 50V - 1400V Surface Mount Rectifier .

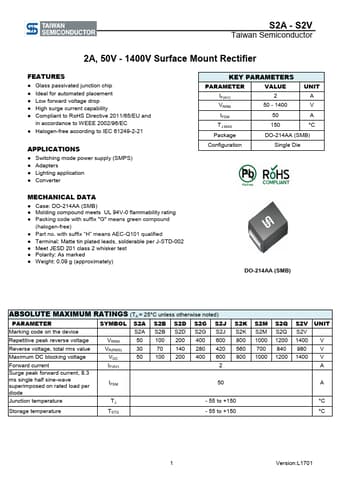

datasheet Preview Page 1 from Datasheet4u.com

S2A-TaiwanSemiconductor.pdf

S2A Datasheet Preview — Preview of S2A PDF

Datasheet Details

Part number:

S2A

Manufacturer:

Taiwan Semiconductor

File Size:

560.91 KB

Description:

Surface Mount Rectifier

Features

* Glass passivated junction chip
* Ideal for automated placement
* Low forward voltage drop
* High surge current capability
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* Converter KEY PARAMETERS PARAMETER IF(AV) VRRM IFSM TJ MAX Package VALUE 2 UNIT A 50 - 1400 V 50 A 150 °C DO-214AA (SMB) Configuration Single Die MECHANICAL DATA
* Case: DO-214AA (SMB)
* Mold
