S2K Surface Mount Rectifier

S2K Description

S2A - S2V Taiwan Semiconductor 2A, 50V - 1400V Surface Mount Rectifier .

S2K Features

* Glass passivated junction chip
* Ideal for automated placement
* Low forward voltage drop
* High surge current capability
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC

S2K Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* Converter KEY PARAMETERS PARAMETER IF(AV) VRRM IFSM TJ MAX Package VALUE 2 UNIT A 50 - 1400 V 50 A 150 °C DO-214AA (SMB) Configuration Single Die MECHANICAL DATA
* Case: DO-214AA (SMB)
* Mold

📥 Download Datasheet

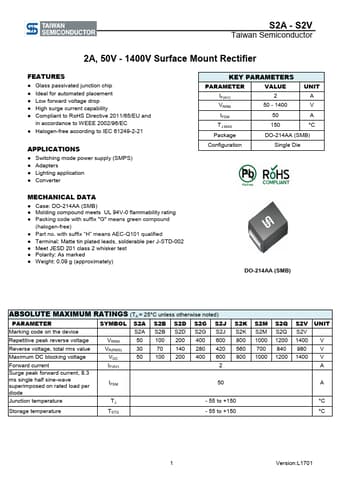

Preview of S2K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S2K
Manufacturer
Taiwan Semiconductor
File Size
557.15 KB
Datasheet
S2K-TaiwanSemiconductor.pdf
Description
Surface Mount Rectifier
