S3B, Surface Mount Rectifier

S3A - S3M Taiwan Semiconductor 3A, 50V - 1000V Surface Mount Rectifier .

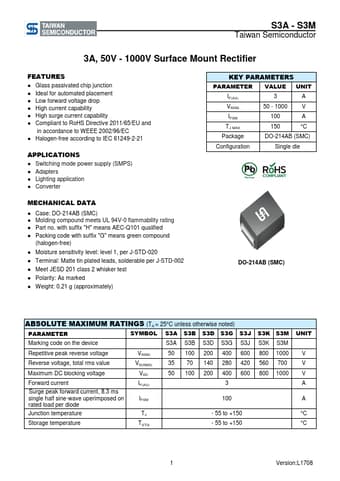

datasheet Preview Page 1 from Datasheet4u.com

S3B-TaiwanSemiconductor.pdf

S3B Datasheet Preview — Preview of S3B PDF

Datasheet Details

Part number:

S3B

Manufacturer:

Taiwan Semiconductor

File Size:

385.37 KB

Description:

Surface Mount Rectifier

Features

* Glass passivated chip junction
* Ideal for automated placement
* Low forward voltage drop
* High current capability
* High surge current capability
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC
* Halogen-free according to IEC 61249-2-21 A

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* Converter KEY PARAMETERS PARAMETER VALUE UNIT IF(AV) VRRM IFSM TJ MAX Package 3A 50 - 1000 V 100 A 150 °C DO-214AB (SMC) Configuration Single die MECHANICAL DATA
* Case: DO-214AB (SMC)
* Molding c
