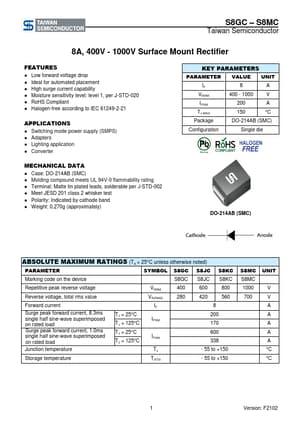

datasheet Preview Page 1 from Datasheet4u.com

S8JC Surface Mount Glass Passivated Rectifier

S8GC * S8MC Taiwan Semiconductor 8A, 400V - 1000V Surface Mount Rectifier .
only.

S8JC-TaiwanSemiconductor.pdf

S8JC Datasheet Preview — Preview of S8JC PDF

Datasheet Details

Part number:

S8JC

Manufacturer:

Taiwan Semiconductor

File Size:

422.11 KB

Description:

Surface Mount Glass Passivated Rectifier

Features

* Low forward voltage drop
* Ideal for automated placement
* High surge current capability
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* Converter KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 8 A 400 - 1000 V IFSM TJ MAX Package 200 A 150 °C DO-214AB (SMC) Configuration Single die MECHANICAL DATA
* Case: DO-214AB (SMC)
* Mo
