SBT604G

Glass Passivated Bridge Rectifiers

SBT604G Features

* UL Recognized File # E-96005 Glass passivated junction Surge overload rating 175 amperes peak Low forward voltage drop Mounting position: Any High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs., ( 2.3 kg ) tension Small size, simple installation

SBT604G Datasheet (102.80 KB)

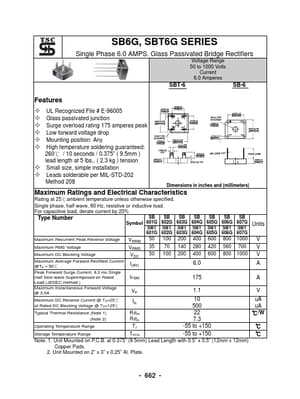

Preview of SBT604G PDF

Datasheet Details

Part number:

SBT604G

Manufacturer:

Taiwan Semiconductor

File Size:

102.80 KB

Description:

Glass passivated bridge rectifiers.
SB6G, SBT6G SERIES Single Phase 6.0 AMPS. Glass Passivated Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 6.0 Amperes SBT-6 SB-6 Featur.
