* UL Recognized File # E-96005 Glass passivated junction Surge overload rating 175 amperes peak Low forward voltage drop Mounting position: Any High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs., ( 2.3 kg ) tension Small size, simple installation
SBT605G
Taiwan Semiconductor
102.80 KB
Glass passivated bridge rectifiers.

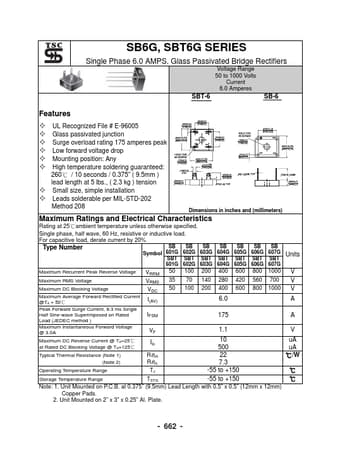

SB6G, SBT6G SERIES
Single Phase 6.0 AMPS. Glass Passivated Bridge Rectifiers
Voltage Range 50 to 1000 Volts
Current 6.0 Amperes
SBT-6
SB-6
Featur.
