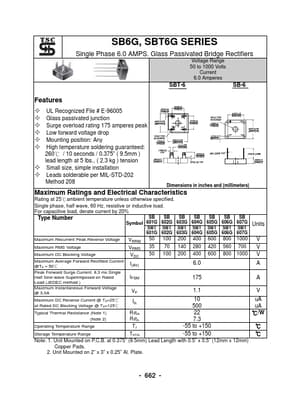

datasheet Preview Page 1 from Datasheet4u.com

SBT606G, SBT601G Glass Passivated Bridge Rectifiers

SB6G, SBT6G SERIES Single Phase 6.0 AMPS.Glass Passivated Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 6.0 Amperes SBT-6 SB-6 Featur.

SBT601G-TaiwanSemiconductor.pdf

SBT606G Datasheet Preview — This datasheet PDF includes multiple part numbers: SBT606G, SBT601G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBT606G, SBT601G

Manufacturer:

Taiwan Semiconductor

File Size:

102.80 KB

Description:

Glass Passivated Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SBT606G, SBT601G.
Please refer to the document for exact specifications by model.

Features

* UL Recognized File # E-96005 Glass passivated junction Surge overload rating 175 amperes peak Low forward voltage drop Mounting position: Any High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Small size, simple installation
