SF1605G, SF1601G, Glass Passivated Super Fast Rectifiers

SF1601G * SF1608G Taiwan Semiconductor 16A, 50V - 600V Super Fast Rectifier .
only.

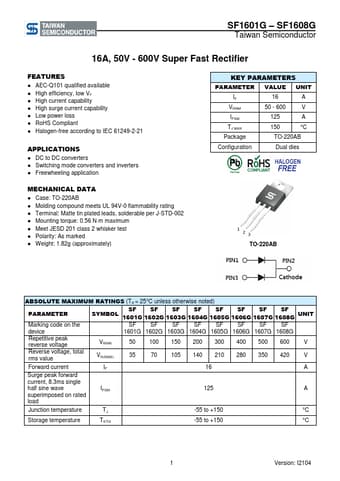

SF1601G_TaiwanSemiconductor.pdf

SF1605G Datasheet Preview — This datasheet PDF includes multiple part numbers: SF1605G, SF1601G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SF1605G, SF1601G

Manufacturer:

Taiwan Semiconductor

File Size:

669.18 KB

Description:

Glass Passivated Super Fast Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SF1605G, SF1601G.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified available
* High efficiency, low VF
* High current capability
* High surge current capability
* Low power loss
* RoHS Compliant

Applications

* DC to DC converters
* Switching mode converters and inverters
* Freewheeling application KEY PARAMETERS PARAMETER VALUE UNIT IF 16 A VRRM 50 - 600 V IFSM 125 A TJ MAX 150 °C Package TO-220AB Configuration Dual dies MECHANICAL DATA
* Case: TO-220AB
* Molding c
