SF25G-T, SF21G-T, Super Fast Rectifier

SF21G-T - SF28G-T Taiwan Semiconductor 2A, 50V - 600V Glass Passivated Super Fast Rectifier .

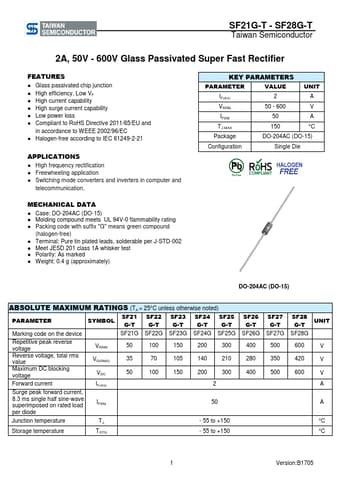

datasheet Preview Page 1 from Datasheet4u.com

SF21G-T-TaiwanSemiconductor.pdf

SF25G-T Datasheet Preview — This datasheet PDF includes multiple part numbers: SF25G-T, SF21G-T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SF25G-T, SF21G-T

Manufacturer:

Taiwan Semiconductor

File Size:

391.09 KB

Description:

Super Fast Rectifier

Note:

This datasheet PDF includes multiple part numbers: SF25G-T, SF21G-T.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip junction
* High efficiency, Low VF
* High current capability
* High surge current capability
* Low power loss
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC

Applications

* High frequency rectification
* Freewheeling application
* Switching mode converters and inverters in computer and telecommunication. KEY PARAMETERS PARAMETER VALUE UNIT IF(AV) VRRM IFSM TJ MAX Package 2A 50 - 600 V 50 A 150 °C DO-204AC (DO-15) Configuration Single Die MEC
