SFS1602GH, SFS1601GH, 50V - 600V Super Fast Surface Mount Rectifier

SFS1601GH * SFS1608GH Taiwan Semiconductor 16A, 50V - 600V Super Fast Surface Mount Rectifier .
only.

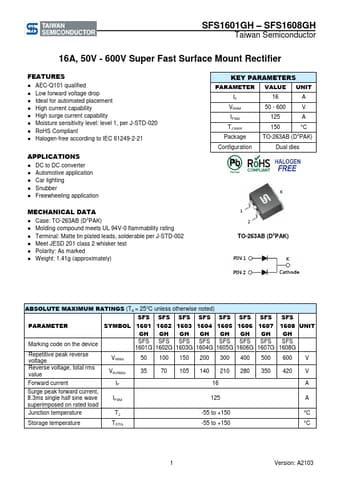

datasheet Preview Page 1 from Datasheet4u.com

SFS1601GH-TaiwanSemiconductor.pdf

SFS1602GH Datasheet Preview — This datasheet PDF includes multiple part numbers: SFS1602GH, SFS1601GH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SFS1602GH, SFS1601GH

Manufacturer:

Taiwan Semiconductor

File Size:

584.79 KB

Description:

50V - 600V Super Fast Surface Mount Rectifier

Note:

This datasheet PDF includes multiple part numbers: SFS1602GH, SFS1601GH.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified
* Low forward voltage drop
* Ideal for automated placement
* High current capability
* High surge current capability
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant

Applications

* DC to DC converter
* Automotive application
* Car lighting
* Snubber
* Freewheeling application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM TJ MAX Package 16 A 50 - 600 V 125 A 150 °C TO-263AB (D2PAK) Configuration Dual dies MECHANICAL DATA
* Case: TO-26
