SMAJ60, SMAJ5.0 Datasheet - Taiwan Semiconductor

SMAJ60, SMAJ5.0, Surface Mount Transient Voltage Suppressor

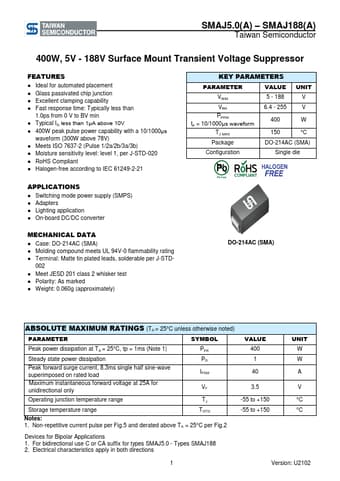

SMAJ5.0(A) * SMAJ188(A) Taiwan Semiconductor 400W, 5V - 188V Surface Mount Transient Voltage Suppressor .

SMAJ5.0-TaiwanSemiconductor.pdf

SMAJ60 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMAJ60, SMAJ5.0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMAJ60, SMAJ5.0

Manufacturer:

Taiwan Semiconductor

File Size:

520.82 KB

Description:

Surface Mount Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: SMAJ60, SMAJ5.0.
Please refer to the document for exact specifications by model.

Features

* Ideal for automated placement
* Glass passivated chip junction
* Excellent clamping capability
* Fast response time: Typically less than 1.0ps from 0 V to BV min
* Typical IR less than 1μA above 10V
* 400W peak pulse power capability with a 10/1000μs waveform (300W above 78

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* On-board DC/DC converter MECHANICAL DATA
* Case: DO-214AC (SMA)
* Molding compound meets UL 94V-0 flammability rating
* Terminal: Matte tin plated leads, solderable per J-STD- 002
* Meet JESD 201
