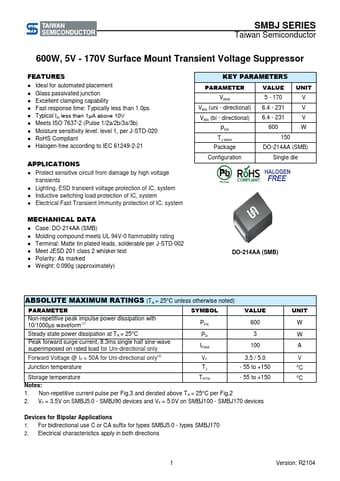

SMBJ30
SMBJ30 is Surface Mount Transient Voltage Suppressor manufactured by Taiwan Semiconductor.
- Part of the SMBJ5.0 comparator family.
- Part of the SMBJ5.0 comparator family.
FEATURES
- Ideal for automated placement
- Glass passivated junction
- Excellent clamping capability
- Fast response time: Typically less than 1.0ps
- Typical IR less than 1μA above 10V
- Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b)
- Moisture sensitivity level: level 1, per J-STD-020
- Ro HS pliant
- Halogen-free according to IEC 61249-2-21
APPLICATIONS
- Protect sensitive circuit from damage by high voltage transients
- Lighting, ESD transient voltage protection of IC, system
- Inductive switching load protection of IC, system
- Electrical Fast Transient Immunity protection of IC, system
KEY PARAMETERS
PARAMETER
VALUE UNIT
VWM VBR (uni
- directional) VBR (bi
- directional)
PPK TJ MAX Package
- 170
- 231
- 231
DO-214AA (SMB)
Configuration
Single die
MECHANICAL DATA
- Case: DO-214AA (SMB)
- Molding pound meets UL 94V-0 flammability rating
- Terminal: Matte tin plated leads, solderable per J-STD-002
- Meet JESD 201 class 2 whisker test
- Polarity: As marked
- Weight: 0.090g (approximately)
DO-214AA...
