SMDJ64CA, SMDJ10A, Surface Mount Transient Voltage Suppressor

SMDJ10A * SMDJ100A Taiwan Semiconductor 3000W, 10V - 100V Surface Mount Transient Voltage Suppressor .

SMDJ10A-TaiwanSemiconductor.pdf

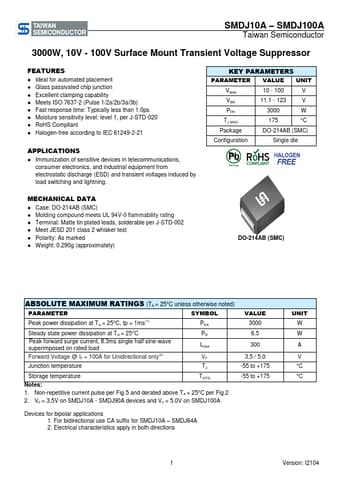

SMDJ64CA Datasheet Preview — This datasheet PDF includes multiple part numbers: SMDJ64CA, SMDJ10A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMDJ64CA, SMDJ10A

Manufacturer:

Taiwan Semiconductor

File Size:

450.91 KB

Description:

Surface Mount Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: SMDJ64CA, SMDJ10A.
Please refer to the document for exact specifications by model.

Features

* Ideal for automated placement
* Glass passivated chip junction
* Excellent clamping capability
* Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b)
* Fast response time: Typically less than 1.0ps
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant
* Halogen-fr

Applications

* Immunization of sensitive devices in telecommunications, consumer electronics, and industrial equipment from electrostatic discharge (ESD) and transient voltages induced by load switching and lightning. KEY PARAMETERS PARAMETER VALUE UNIT VWM 10 - 100 V VBR 11.1 - 123 V PPK 3000 W
