SMDJ85AH, SMDJ10AH - Surface Mount Transient Voltage Suppressor

Taiwan Semiconductor

📥 Download Datasheet

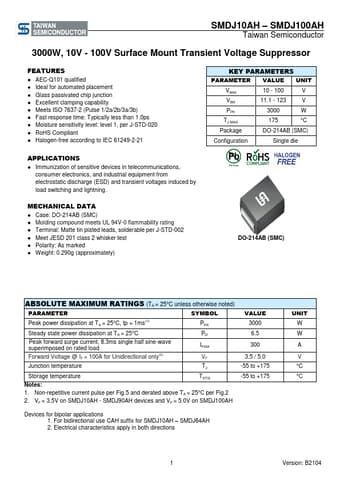

SMDJ85AH Datasheet Preview — This datasheet PDF includes multiple part numbers: SMDJ85AH, SMDJ10AH. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SMDJ85AH, SMDJ10AH
Manufacturer	Taiwan Semiconductor ↗
File Size	452.04 KB
Description	Surface Mount Transient Voltage Suppressor
Datasheet	SMDJ10AH-TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SMDJ85AH, SMDJ10AH. Please refer to the document for exact specifications by model.

SMDJ85AH Product details

Features

AEC-Q101 qualified.
Ideal for automated placement.
Glass passivated chip junction.
Excellent clamping capability.
Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b).
Fast response time: Typically less than 1.0ps.
Moisture sensitivity level: level 1, per J-STD-020.
RoHS Compliant.
Halogen-free according to IEC 61249-2-21 KEY.
