SR2030PT, (SR2020PT - SR2060PT) 20.0 Amp Schottky Barrier Rectifiers

SR2020PT THRU SR2060PT 20.0 AMPS.Schottky Barrier Rectifiers Voltage Range 20 to 60 Volts Current 20.0 Amperes TO-3P/TO-247AD .

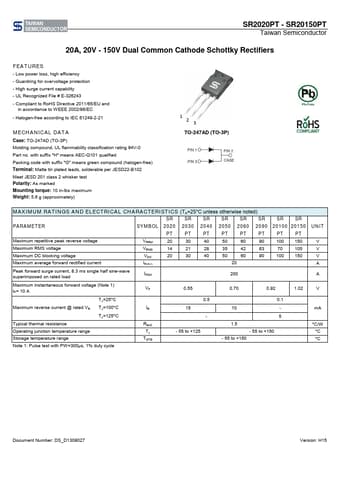

datasheet Preview Page 1 from Datasheet4u.com

SR2030PT_TaiwanSemiconductor.pdf

SR2030PT Datasheet Preview — Preview of SR2030PT PDF

Datasheet Details

Part number:

SR2030PT

Manufacturer:

Taiwan Semiconductor

File Size:

206.41 KB

Description:

(SR2020PT - SR2060PT) 20.0 Amp Schottky Barrier Rectifiers

Features

* a a a a a a a a a a Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low VF High surge capability Epitaxial cons

Applications

* Guardring for transient protection High temperature soldering guaranteed: 260oC/10seconds,0.17”(4.3mm)lead lengths at 5 lbs. , (2.3kg) tension Mechanical Data a a a a Cases: JEDEC TO-3P/TO-247AD molded plastic Terminals: Leads solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting posi
