SRA2040, SRA2020 - Schottky Barrier Rectifier

Taiwan Semiconductor

📥 Download Datasheet

SRA2040 Datasheet Preview — This datasheet PDF includes multiple part numbers: SRA2040, SRA2020. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SRA2040, SRA2020
Manufacturer	Taiwan Semiconductor
File Size	215.20 KB
Description	Schottky Barrier Rectifier
Datasheet	SRA2020-TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SRA2040, SRA2020. Please refer to the document for exact specifications by model.

SRA2040 Product details

Description

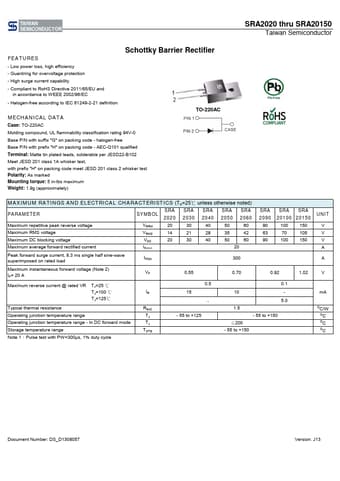

Green compound AEC-Q101 qualified RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) AVERAGE FORWARD CURRENT (A) FIG.1 FORWARD CURRENT DERATING CURVE 24 SRA2050-SRA20150 20 16 12 SRA2020-SRA2040 8 4 0 50 RESISTIVE OR INDUCTIVELOAD WITH HEATSINK 60 70 80 90 100 110 120 130 140 150 CASE TEMPERATURE (oC) PEAK FORWARD SURGE CURRENT (A) FIG.2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 350 8.3ms Single Half Sine Wave 300 JEDEC Method 250 200 150 100 50 1 10 NUMBER

Features

- Low power loss, high efficiency - Guardring for overvoltage protection - High surge current capability - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition TO-220AC.
