SS39, SS32 Surface Mount Schottky Barrier Rectifier

SS39 Description

SS32 - SS320 Taiwan Semiconductor 3A, 20V - 200V Surface Mount Schottky Barrier Rectifier .

SS39 Features

* Low power loss, high efficiency
* Ideal for automated placement
* Guard ring for over-voltage protection
* High surge current capability
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC
* Halogen-free according to IEC 61249-2-21 KEY PARAMETERS

SS39 Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* Converter MECHANICAL DATA
* Case: DO-214AB (SMC)
* Molding compound meets UL 94V-0 flammability rating
* Part no. with suffix "H" means AEC-Q101 qualified
* Packing code with suffix "G" means gr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS39, SS32. Please refer to the document for exact specifications by model.

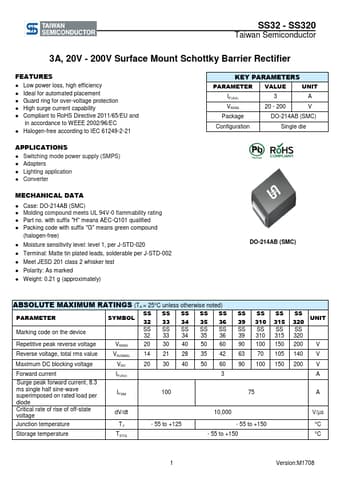

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS39, SS32
Manufacturer
Taiwan Semiconductor
File Size
268.25 KB
Datasheet
SS32-TaiwanSemiconductor.pdf
Description
Surface Mount Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: SS39, SS32.
Please refer to the document for exact specifications by model.
