TLD5S12AH - Surface Mount Transient Voltage Suppressor

Product Overview

Taiwan Semiconductor

📥 Download Datasheet

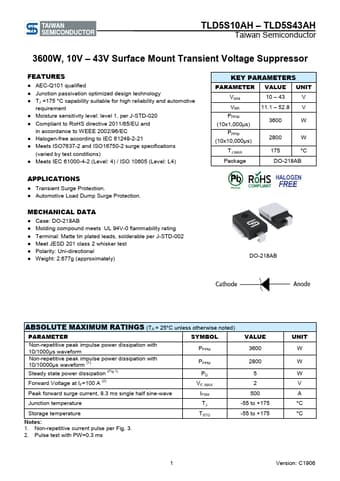

TLD5S12AH Surface Mount Transient Voltage Suppressor by Taiwan Semiconductor - Datasheet Preview — Datasheet preview – TLD5S12AH

Datasheet Details

Part number	TLD5S12AH
Manufacturer	Taiwan Semiconductor
File Size	354.41 KB
Description	Surface Mount Transient Voltage Suppressor
Datasheet	TLD5S12AH Datasheet
Note	This datasheet PDF includes multiple part numbers: TLD5S12AH, TLD5S10AH. Please refer to the document for exact specifications by model.
Additional preview pages of the TLD5S12AH datasheet.

Product details

Features

AEC-Q101 qualified.
Junction passivation optimized design technology.
TJ =175 °C capability suitable for high reliability and automotive requirement.
Moisture sensitivity level: level 1, per J-STD-020.
Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC.
Halogen-free according to IEC 61249-2-21.
Meets ISO7637-2 and ISO16750-2 surge specifications (varied by test conditions).
