TLD5S14AH - Surface Mount Transient Voltage Suppressor

This page provides the datasheet information for the TLD5S14AH, a member of the TLD5S10AH Surface Mount Transient Voltage Suppressor family.

Features

  • AEC-Q101 qualified.
  • Junction passivation optimized design technology.
  • TJ =175 °C capability suitable for high reliability and automotive requirement.
  • Moisture sensitivity level: level 1, per J-STD-020.
  • Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC.
  • Halogen-free according to IEC 61249-2-21.
  • Meets ISO7637-2 and ISO16750-2 surge specifications (varied by test conditions).

📥 Download Datasheet

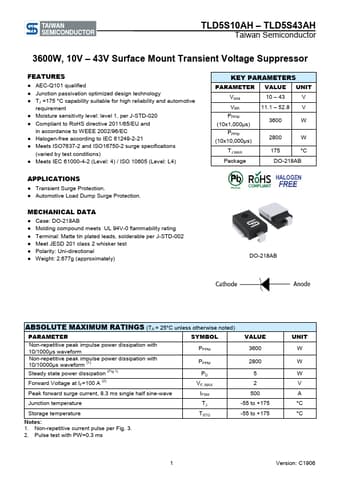

Datasheet preview – TLD5S14AH

Datasheet Details

Part number TLD5S14AH
Manufacturer Taiwan Semiconductor
File Size 354.41 KB
Description Surface Mount Transient Voltage Suppressor
Datasheet download datasheet TLD5S14AH Datasheet
Additional preview pages of the TLD5S14AH datasheet.

📁 Similar Datasheet

  • TLD5045EJ - 700mA High Integration - DC/DC Step-Down Converter (Infineon)
  • TLD5085EJ - 1.8A DC/DC Step-Down Converter (Infineon)
  • TLD5095EL - Power LED Driver (Infineon)
  • TLD5097EL - Power DC/DC Controller (Infineon)
  • TLD5097EP - Power DC/DC Controller (Infineon)
  • TLD5098EL - Power DC/DC Controller (Infineon)
  • TLD5098EP - Power DC/DC Controller (Infineon)
  • TLD5099EP - Power DC/DC Controller (Infineon)
  • TLD5190 - H-Bridge DC/DC Controller (Infineon)
  • TLD5190QV - H-Bridge DC/DC Controller (Infineon)
Other Datasheets by Taiwan Semiconductor
  • TLD5S10AH - Surface Mount Transient Voltage Suppressor
  • TLD5S11AH - Surface Mount Transient Voltage Suppressor
  • TLD5S12AH - Surface Mount Transient Voltage Suppressor
  • TLD5S13AH - Surface Mount Transient Voltage Suppressor
  • TLD5S15AH - Surface Mount Transient Voltage Suppressor
  • TLD5S16AH - Surface Mount Transient Voltage Suppressor
  • TLD5S17AH - Surface Mount Transient Voltage Suppressor
  • TLD5S18AH - Surface Mount Transient Voltage Suppressor

Full PDF Text Transcription

Click to expand full text
TLD5S10AH – TLD5S43AH Taiwan Semiconductor 3600W, 10V – 43V Surface Mount Transient Voltage Suppressor FEATURES ● AEC-Q101 qualified ● Junction passivation optimized design technology ● TJ =175 °C capability suitable for high reliability and automotive requirement ● Moisture sensitivity level: level 1, per J-STD-020 ● Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC ● Halogen-free according to IEC 61249-2-21 ● Meets ISO7637-2 and ISO16750-2 surge specifications (varied by test conditions) APPLICATIONS ● Transient Surge Protection. ● Automotive Load Dump Surge Protection. KEY PARAMETERS PARAMETER VALUE UNIT VWM 10 – 43 V VBR PPPM (10x1,000μs) PPPM (10x10,000μs) 11.1 – 52.
