TLD6S12AH - 10V - 43V Surface Mount Transient Voltage Suppressor

This page provides the datasheet information for the TLD6S12AH, a member of the TLD6S10AH 10V - 43V Surface Mount Transient Voltage Suppressor family.

Datasheet Summary

Features

  • AEC-Q101 qualified.
  • Junction passivation optimized design technology.
  • TJ =175 °C capability suitable for high reliability and automotive requirement.
  • Moisture sensitivity level: level 1, per J-STD-020.
  • Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC.
  • Halogen-free according to IEC 61249-2-21.
  • Meets ISO7637-2 and ISO16750-2 surge specifications (varied by test conditions).

📥 Download Datasheet

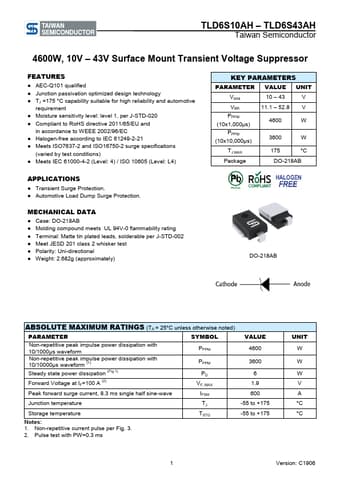

Datasheet preview – TLD6S12AH
