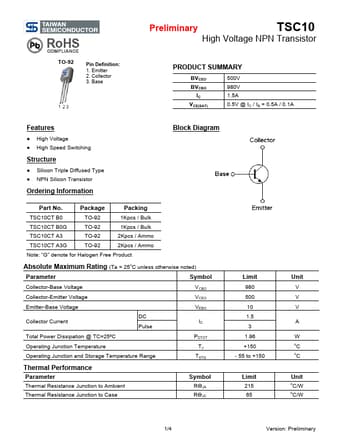

TSC10CT
Features
- - High Voltage High Speed Switching
Block Diagram
Structure
- - Silicon Triple Diffused Type NPN Silicon Transistor
Ordering Information
Part No.
TSC10CT B0 TSC10CT B0G TSC10CT A3 TSC10CT A3G
Package
TO-92 TO-92 TO-92 TO-92
Packing
1Kpcs / Bulk 1Kpcs / Bulk 2Kpcs / Ammo 2Kpcs / Ammo
Note: “G” denote for Halogen Free Product
Absolute Maximum Rating (Ta = 25o C unless otherwise noted)
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Total Power Dissipation @ TC=25ºC Operating Junction Temperature Operating Junction and Storage Temperature Range DC Pulse
Symbol
VCBO VCEO VEBO IC PDTOT TJ TSTG
Limit
980 500 10 1.5 3 1.96 +150
- 55 to +150
Unit
V V V A W o o
Thermal Performance
Parameter
Thermal Resistance Junction to Ambient Thermal Resistance Junction to Case
Symbol
RӨJA RӨJC
Limit
215 65
Unit o o
C/W C/W
1/4
Version: Preliminary
Preliminary
TSC10
High Voltage NPN Transistor
Electrical Specifications (Ta...
