TSS0230LU - Surface Mount Schottky Barrier Diode

Datasheet Summary

Description

DIM.

Min Typ.

Typ.

Features

  • - Designed for mounting on small surface - Extremely thin/leadless package - Low capacitance - Low forward voltage drop - Packing code with suffix "G" means green compound (halogen-free).

📥 Download Datasheet

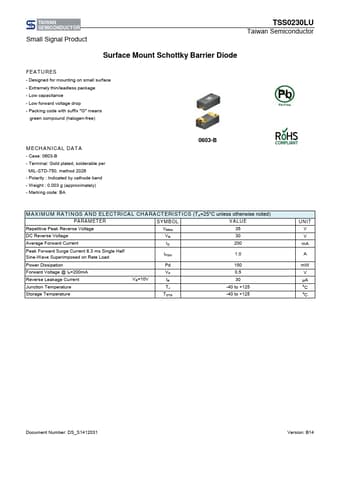

Datasheet preview – TSS0230LU

Datasheet Details

Part number TSS0230LU
Manufacturer Taiwan Semiconductor
File Size 194.20 KB
Description Surface Mount Schottky Barrier Diode
Datasheet download datasheet TSS0230LU Datasheet
Additional preview pages of the TSS0230LU datasheet.

📁 Similar Datasheet

  • TSS0340L - Surface Mount Schottky (Taiwan Semiconductor Company)
  • TSS0340U - Surface Mount Schottky Barrier (Taiwan Semiconductor Company)
  • TSS-IO16-E - Van Peripheral Circuit - 16 Inputs-outputs (ATMEL Corporation)
  • TSS-TD-26EA - TACT SWITCH (Suntan)
  • TSS10G45S - SOLID STATE AC RELAY (Toshiba Semiconductor)
  • TSS10J45S - SOLID STATE AC RELAY (Toshiba Semiconductor)
  • TSS1D41 - SSR (Toshiba)
  • TSS1D42 - (TSS1x42) SSR / NORMALLY-OPEN PC-MOUNT SOLID-STATE RELAY (Toshiba Semiconductor)
  • TSS1D44 - (TSS1x44) SSR / NORMALLY-OPEN PC-MOUNT SOLID-STATE RELAY (Toshiba Semiconductor)
  • TSS1G41 - (TSS1x41) SSR (Toshiba)
Other Datasheets by Taiwan Semiconductor
  • TSS0230U - Surface Mount Schottky Barrier Diode
  • TSS42L - Surface Mount Schottky
  • TSS42U - Surface Mount Schottky Barrier
  • TSS43L - Surface Mount Schottky
  • TSS43U - Surface Mount Schottky Barrier
  • TSS4B01G - Glass Passivated Bridge Rectifiers
  • TSS4B04G - Glass Passivated Bridge Rectifiers
  • TSS54L - Surface Mount Schottky

Full PDF Text Transcription

Click to expand full text
Small Signal Product TSS0230LU Taiwan Semiconductor Surface Mount Schottky Barrier Diode FEATURES - Designed for mounting on small surface - Extremely thin/leadless package - Low capacitance - Low forward voltage drop - Packing code with suffix "G" means green compound (halogen-free) MECHANICAL DATA - Case: 0603-B - Terminal: Gold plated, solderable per MIL-STD-750, method 2026 - Polarity : Indicated by cathode band - Weight : 0.003 g (approximately) - Marking code: BA 0603-B MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TA=25°C unless otherwise noted) PARAMETER SYMBOL VALUE Repetitive Peak Reverse Voltage VRRM 35 DC Reverse Voltage VR 30 Average Forward Current IO 200 Peak Forward Surge Current 8.3 ms Single Half Sine-Wave Superimposed on Rate Load IFSM 1.
