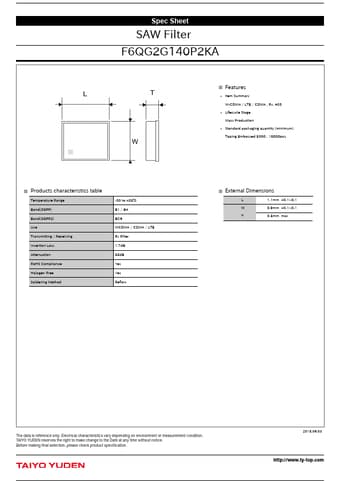

F6QG2G140P2KA - SAW Filter

Taiyo Yuden

Datasheet Details

Item Summary W-CDMA / LTE / CDMA , Rx, 403 Lifecycle Stage Mass Production Standard packaging quantity (minimum) Taping Embossed 5000 , 15000pcs Products characteristics table Temperature Range Band(3GPP) Band(3GPP2) Use Transmitting / Receiving Insertion Loss Attenuation RoHS Compliance Halogen Free Soldering Method -30 to +85℃ B1 / B4 BC6 WCDMA / CDMA / LTE Rx Filter 1.7dB 55dB Yes Yes Reflow External Dimensions L 1.1mm +0.1:-0.1 W 0.9mm +0.1:-0.1 T 0.5mm max The data is reference only. El.
