LBC3225T100KR - Wire-wound Chip Inductors

Product Overview

Taiyo Yuden

Part number	LBC3225T100KR
Manufacturer	Taiyo Yuden
File Size	118.67 KB
Description	Wire-wound Chip Inductors
Datasheet	LBC3225T100KR Datasheet

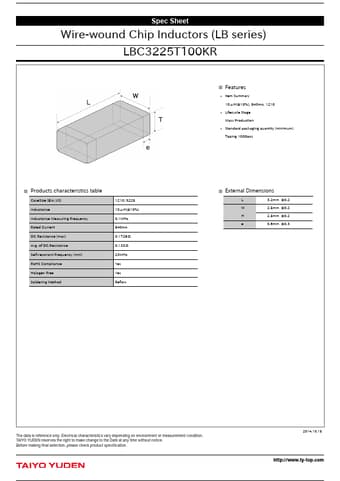

Additional preview pages of the LBC3225T100KR datasheet.

Item Summary 10μH(±10%), 540mA, 1210 Lifecycle Stage Mass Production Standard packaging quantity (minimum) Taping 1000pcs Products characteristics table CaseSize (EIA/JIS) Inductance Inductance Measuring Frequency Rated Current DC Resistance (max) Avg. of DC. Resistance Self-resonant Frequency (min) RoHS Compliance Halogen Free Soldering Method 1210/3225 10μH(±10%) 0.1MHz 540mA 0.1729Ω 0.133Ω 23MHz Yes Yes Reflow External Dimensions L W H e 3.2mm ±0.2 2.5mm ±0.2 2.5mm ±0.2 0.6mm ±0.3 2014.10.1.
