SDF-0.63-1000 - (SD Series) High Efficiency Storage Chokes

This page provides the datasheet information for the SDF-0.63-1000, a member of the SDF-063-1000 (SD Series) High Efficiency Storage Chokes family.

Datasheet Summary

Features

  • Operating frequency to 200kHz.
  • Small size and high "Q".
  • Highly stable inductance with changing bias current.
  • Fully encapsulated styles available meeting class GFK (-40°C to +125°C, humidity class F) per DIN 40040.
  • Manufactured in ISO-9000 approved factory Electrical Specifications at 25°C Part Number S D __-0.63-400 S D __-0.63-500 S D __-0.63-630 S D __-0.63-1000 S D __-0.63-2000 S D __-0.63-2500 S D __-0.63-4000 S D __-0.63-6000 S D __-1.0-250 S.

📥 Download Datasheet

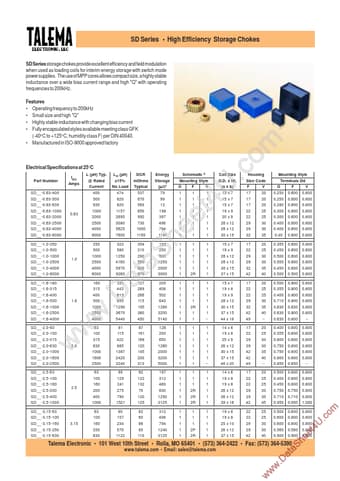

Datasheet preview – SDF-0.63-1000
