Q2006DH4 Datasheet - Teccor Electronics

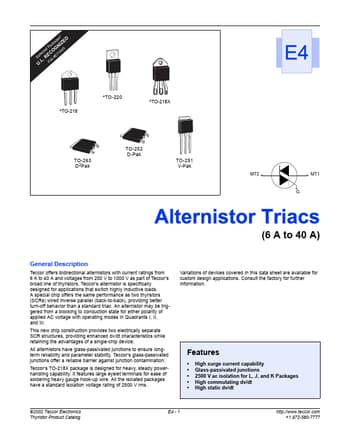

Alternistor Triacs

Q2006DH4 Features

* large eyelet terminals for ease of soldering heavy gauge hook-up wire. All the isolated packages have a standard isolation voltage rating of 2500 V rms. Variations of devices covered in this data sheet are available for custom design applications. Consult the factory for further information. Featur

Q2006DH4 General Description

Teccor offers bidirectional alternistors with current ratings from 6 A to 40 A and voltages from 200 V to 1000 V as part of Teccor's broad line of thyristors. Teccor's alternistor is specifically designed for applications that switch highly inductive loads. A special chip offers the same performance.

Q2006DH4 Datasheet (189.43 KB)
