TW2816 4 Channel Video Decoders and Audio Codecs

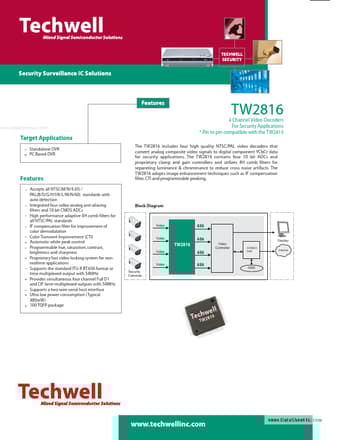

TW2816 www.DataSheet4U.com Target Applications Standalone DVR PC Based DVR 4 Channel Video Decoders For Security Applications Pin to pin compatible with the TW2815 The TW2816 includes four high quality NTSC/PAL video decoders that convert analog composite video signals to digital component YCbCr data for security applications. The TW2816 contains four 10 bit ADCs and proprietary clamp and gain controllers and utilizes 4H comb filters for separating luminance & chrominance to reduce cross.

TW2816 Features

* Accepts all NTSC(M/N/4.43) / PAL(B/D/G/H/I/K/L/M/N/60) standards with auto detection Integrated four video analog anti-aliasing filters and 10 bit CMOS ADCs High performance adaptive 4H comb filters for all NTSC/PAL standards IF compensation filter for improvement of color demodulation Color Transie
