TC04B

(TC04x / TC05x) LOW POWER / BANDGAP VOLTAGE REFERENCES

TC04B Features

* s s Temperature Coefficient 50ppm/°C Wide Operating Current Range TC04 15µA to 20mA TC05 20µA to 20mA Dynamic Impedance 1Ω Output Tolerance Typ. 2% Output Voltage Option TC04 1.25V TC05 2.5V TO-92 Plastic Package 8-Pin Plastic Narrow Body SOIC Package 1 GENERAL DESCRIPTION The TC04 (1.25V ou

TC04B General Description

The TC04 (1.25V output) and TC05 (2.5V output) bipolar, two-terminal, bandgap voltage references offer precision performance without premium price. These devices do not require thin-film resistors, greatly lowering manufacturing complexity and cost. A 50ppm/°C output temperature coefficient and 15µA.

TC04B Datasheet (46.31 KB)

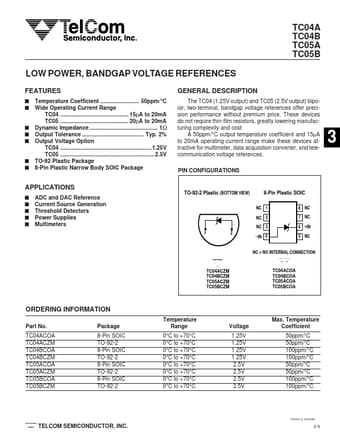

Preview of TC04B PDF

Datasheet Details

Part number:

TC04B

Manufacturer:

TelCom Semiconductor

File Size:

46.31 KB

Description:

(tc04x / tc05x) low power / bandgap voltage references.
