TC4424 - (TC4423 - TC4425) 3A DUAL HIGH-SPEED POWER MOSFET DRIVERS

This page provides the datasheet information for the TC4424, a member of the TC4425 (TC4423 - TC4425) 3A DUAL HIGH-SPEED POWER MOSFET DRIVERS family.

Datasheet Summary

Description

The TC4423/4424/4425 are higher output current versions of the new TC4426/4427/4428 buffer/drivers, which, in turn, are improved versions of the earlier TC426/427/428 series.

All three families are pin-compatible.

Features

  • s s s s s s High Peak Output Current 3A Wide Operating Range 4.5V to 18V High Capacitive Load Drive Capability 1800 pF in 25nsec Short Delay Times < 40nsec Typ Matched Rise/Fall Times Low Supply Current.
  • With Logic "1" Input 3.5 mA.
  • With Logic "0" Input 350 µ A Low Output Impedance 3.5Ω Typ Latch-Up Protected . Will Withstand 1.5A Reverse Current Logic Input Will Withstand Negative Swing Up to 5V ESD Protected 4 kV Pinouts Same as TC1426/27/28; TC4426/27/28 1.

📥 Download Datasheet

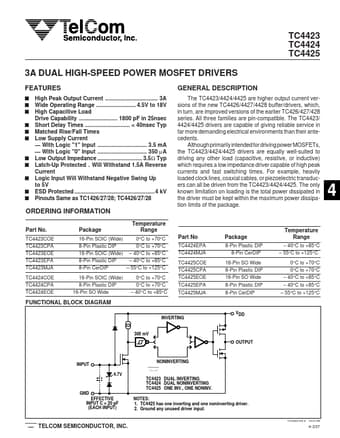

Datasheet preview – TC4424

Datasheet Details

Part number TC4424
Manufacturer TelCom Semiconductor
File Size 84.03 KB
Description (TC4423 - TC4425) 3A DUAL HIGH-SPEED POWER MOSFET DRIVERS
Datasheet download datasheet TC4424 Datasheet
Additional preview pages of the TC4424 datasheet.

📁 Similar Datasheet

  • TC4424 - 3A Dual High-Speed Power MOSFET Drivers (Microchip Technology)
  • TC4424A - 3A Dual High-Speed Power MOSFET Drivers (Microchip)
  • TC4420 - (TC4420 /TC4429) 6A HIGH-SPEED MOSFET DRIVERS (Microchip Technology)
  • TC4421 - 9A High-Speed MOSFET Drivers (Microchip Technology)
  • TC4421A - 9A High-Speed MOSFET Drivers (Microchip Technology)
  • TC4422 - 9A High-Speed MOSFET Drivers (Microchip Technology)
  • TC4422A - 9A High-Speed MOSFET Drivers (Microchip Technology)
  • TC4423 - 3A Dual High-Speed Power MOSFET Drivers (Microchip Technology)
  • TC4423A - 3A Dual High-Speed Power MOSFET Drivers (Microchip)
  • TC4425 - 3A Dual High-Speed Power MOSFET Drivers (Microchip Technology)
Other Datasheets by TelCom Semiconductor
  • TC4420 - (TC4420 /TC4429) 6A HIGH-SPEED MOSFET DRIVERS
  • TC4421 - (TC4421 / TC4422) 9A HIGH-SPEED MOSFET DRIVERS
  • TC4422 - (TC4421 / TC4422) 9A HIGH-SPEED MOSFET DRIVERS
  • TC4423 - (TC4423 - TC4425) 3A DUAL HIGH-SPEED POWER MOSFET DRIVERS
  • TC4425 - (TC4423 - TC4425) 3A DUAL HIGH-SPEED POWER MOSFET DRIVERS
  • TC4426 - (TC4426 - TC4428) 1.5A DUAL HIGH-SPEED POWER MOSFET DRIVERS
  • TC4426A - (TC4426A - TC4428A) 1.5A DUAL HIGH-SPEED POWER MOSFET DRIVERS
  • TC4427 - (TC4426 - TC4428) 1.5A DUAL HIGH-SPEED POWER MOSFET DRIVERS

Full PDF Text Transcription

Click to expand full text
TC4423 TC4424 TC4425 3A DUAL HIGH-SPEED POWER MOSFET DRIVERS FEATURES s s s s s s High Peak Output Current .................................. 3A Wide Operating Range .......................... 4.5V to 18V High Capacitive Load Drive Capability ......................... 1800 pF in 25nsec Short Delay Times ............................. < 40nsec Typ Matched Rise/Fall Times Low Supply Current — With Logic "1" Input ................................ 3.5 mA — With Logic "0" Input ................................ 350 µ A Low Output Impedance ............................. 3.5Ω Typ Latch-Up Protected . Will Withstand 1.5A Reverse Current Logic Input Will Withstand Negative Swing Up to 5V ESD Protected ....................................................
