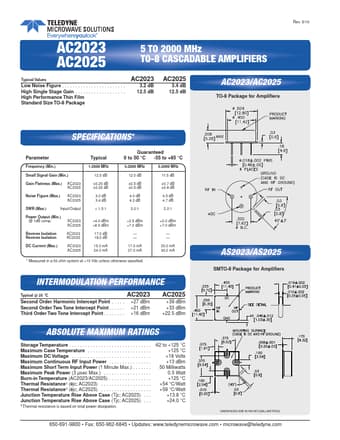

Rev. 5/10
AC2023 AC2025
5 TO 2000 MHz TO-8 CASCADABLE AMPLIFIERS
Typical Values
Low Noise Figure . . . . . . . . . . . . . . . . . . . . . . . . High Single Stage Gain . . . . . . . . . . . . . . . . . . . High Performance Thin Film Standard Size TO-8 Package
AC2023
3.2 dB 12.5 dB
AC2025
3.4 dB 12.5 dB
AC2023/AC2025
TO-8 Package for Amplifiers
SPECIFICATIONS*
Parameter
Frequency (Min.)
Small Signal Gain (Min.)
Gain Flatness (Max.) AC2023 AC2025
Noise Figure (Max.) AC2023 AC2025
SWR (Max.)
Input/Output
Power Output (Min.) @ 1dB comp.
AC2023 AC2025
Reverse Isolation Reverse Isolation
AC2023 AC2025
DC Current (Max.)
AC2023 AC2025
Typical
1-2000 MHz
12.5 dB
±0.25 dB ±0.25 dB
3.2 dB 3.4 dB
< 1.5:1
+4.0 dBm +8.5 dBm
17.0 dB 18.0 dB
15.0 mA 24.
