CCS-32, CCS-32-1 - Latching Coaxial Switch

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CCS-32, CCS-32-1. Please refer to the document for exact specifications by model.

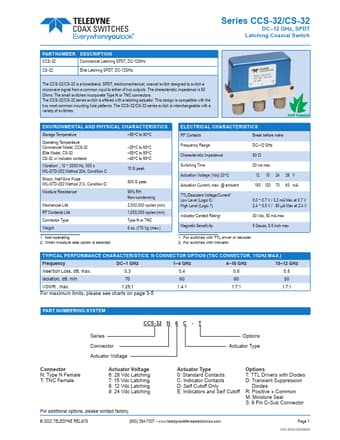

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number CCS-32, CCS-32-1
Manufacturer Teledyne
File Size 715.20 KB
Description Latching Coaxial Switch
Datasheet download datasheet CCS-32-1-Teledyne.pdf
Note This datasheet PDF includes multiple part numbers: CCS-32, CCS-32-1.
Please refer to the document for exact specifications by model.

CCS-32 Product details

Description

CCS-32 Commercial Latching SPDT, DC-12GHz CS-32 Elite Latching SPDT, DC-12GHz The CCS-32/CS-32 is a broadband, SPDT, electromechanical, coaxial switch designed to switch a microwave signal from a common input to either of two outputs.The characteristic impedance is 50 Ohms.The small switches incorporate Type N or TNC connectors.The CCS-32/CS-32 series switch is offered with a latching actuator.This design is compatible with the two most common mounting hole patterns.The CCS-32/CS-32 se
