CRT-40

Latching SPDT Coaxial Switch

CRT-40 Features

* 1,000,000 cycles (min) Connector Type 2.92 mm (K) Weight 2.65 oz. max (75.12 g) 1. Non-operating 2. When moisture seal option is selected ELECTRICAL CHARACTERISTICS RF Contacts Break before make Frequency Range DC

* 40 GHz Characteristic Impedance 50Ω Terminations 50Ω, 2 Watts

CRT-40 General Description

CCRT-40 Commercial, Terminated DC-40GHz, Latching, SPDT Coaxial switch CRT-40 Elite, Terminated DC-40GHz, Latching, SPDT Coaxial switch The CCRT/CRT-40 is an internally terminated, broadband, SPDT, electromechanical coaxial switch designed to switch a microwave signal from a common input to eit.

CRT-40 Datasheet (897.14 KB)

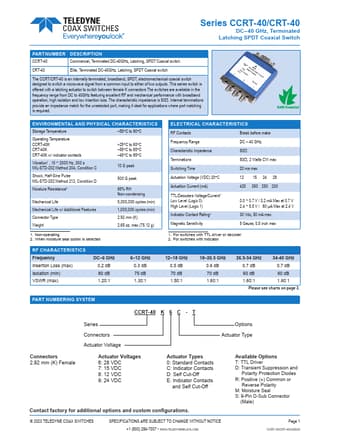

Preview of CRT-40 PDF

Datasheet Details

Part number:

CRT-40

Manufacturer:

Teledyne

File Size:

897.14 KB

Description:

Latching spdt coaxial switch.
