GRF172 Surface Mount 2.5GHz RF Relay

The GRF172 surface-mount Centigrid® relay is an ultraminiature, hermetically sealed, armature relay for 2.5 GHz RF applications. Its low profile height (.330”) and .100” grid spaced terminals make it an ideal choice where extreme packaging density and/or close PC board spacing are required. The GRF.

GRF172 Features

* a unique ground shield that isolates and shields each lead to ensure excellent contact-to-contact and pole-to-pole isolation. This ground shield provides a ground interface that results in improved highfrequency performance as well as parametric repeatability. The GRF172 extends performance advantag

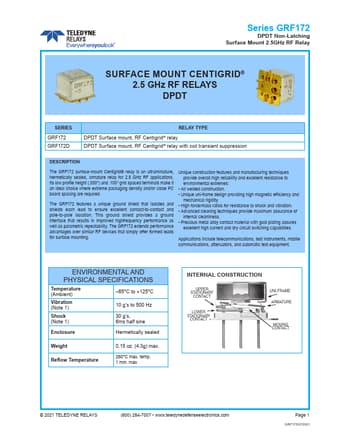

GRF172 Datasheet (1.04 MB)
