RF300D Datasheet, Relay, Teledyne

RF300D Features

• Relay
• High repeatability
• Broader bandwidth
• Metal enclosure for EMI shielding
• High isolation between control and signal paths
• High resistance

PDF File Details

Part number:

RF300D

Manufacturer:

Teledyne

File Size:

868.15kb

Download:

📄 Datasheet

Description:

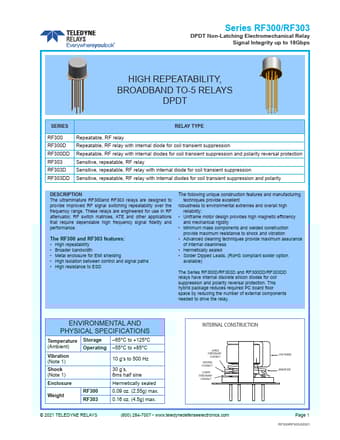

Dpdt non-latching electromechanical relay. The ultraminiature RF300and RF303 relays are designed to provide improved RF signal switching repeatability over the frequency range.

RF300D Application

• Applications that require dependable high frequency signal fidelity and performance. The RF300 and RF303 features:
• High repeatability
