UTC-111 Datasheet PDF (Thin-Film Cascadable Amplifier)

UTC-111 - Thin-Film Cascadable Amplifier

Description

The 111 Series is a single-stage, high-gain silicon bipolar amplifier that incorporates thin-film technology.

Low noise figure and high efficiency are the result of an output transformer coupling design.

Features

Frequency Range: 10 to 100 MHz.
Low Noise: 1.4 dB (Typ).
Medium Power: 16.8 dBm (Typ).
Temperature Compensated.

Datasheet Details

Part number	UTC-111
Manufacturer	Teledyne
File Size	131.33 KB
Description	Thin-Film Cascadable Amplifier
Datasheet	UTC-111 Datasheet
Additional preview pages of the UTC-111 datasheet.

📁 Similar Datasheet

UTC-1044 - Thin Film Cascadable AMplifier (Agilent Technologies)

UTC-2012 - Thin-Film Cascadable Amplifier (Teledyne Cougar)

UTC-3216-421N - Gas Discharge Tube (Unictron)

UTC-546 - Thin-Film Cascadable Amplifier (teledyne cougar)

UTC1018 - FM IF SYSTEM (YOUWANG)

UTC1031 - TV Vertical Deflection System (Hangzhou Silan Microelectronics)

UTC1044 - Thin Film Cascadable AMplifier (Agilent Technologies)

UTC1062 - Low Voltage Telephone Transmission Circuit (Hangzhou Silan Microelectronics)

UTC1062A - Low Voltage Telephone Transmission Circuit (Hangzhou Silan Microelectronics)

UTC1117 - 1A LOW DROPOUT POSITIVE VOLTAGE REGULATOR (Hangzhou Silan Microelectronics)

Full PDF Text Transcription

Click to expand full text

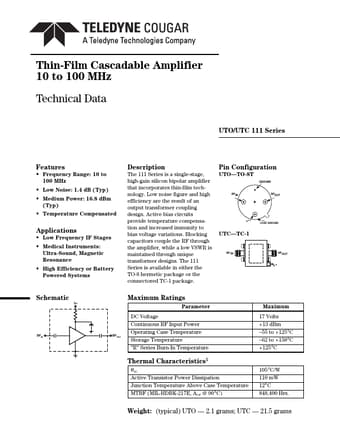

Thin-Film Cascadable Amplifier 10 to 100 MHz Technical Data UTO/UTC 111 Series Features • Frequency Range: 10 to 100 MHz • Low Noise: 1.4 dB (Typ) • Medium Power: 16.8 dBm (Typ) • Temperature Compensated Applications • Low Frequency IF Stages • Medical Instruments: Ultra-Sound, Magnetic Resonance • High Efficiency or Battery Powered Systems Description The 111 Series is a single-stage, high-gain silicon bipolar amplifier that incorporates thin-film technology. Low noise figure and high efficiency are the result of an output transformer coupling design. Active bias circuits provide temperature compensation and increased immunity to bias voltage variations. Blocking capacitors couple the RF through the amplifier, while a low VSWR is maintained through unique transformer designs.
