UTC-2321 - Thin-Film Cascadable Amplifier

This page provides the datasheet information for the UTC-2321, a member of the UTC2321 Thin-Film Cascadable Amplifier family.

Datasheet Summary

Description

The 2321 Series is a two-stage thin-film bipolar RF amplifier using resistive feedback and active bias or temperature compensation and increased Immunity to bias voltage variations.

Features

Frequency Range: 1700 to 2300 MHz.
Medium Gain: 15.0 dB (Typ).
Medium Output Power: +12.0 dBm (Typ).
Temperature Compensated.

Datasheet Details

Part number	UTC-2321
Manufacturer	Teledyne
File Size	170.14 KB
Description	Thin-Film Cascadable Amplifier
Datasheet	UTC-2321 Datasheet

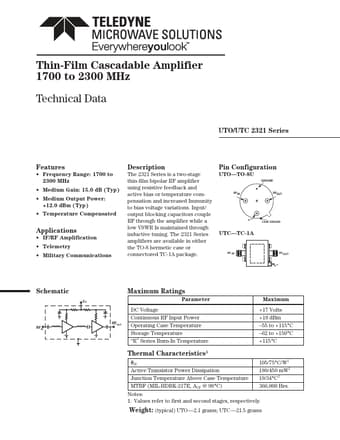

Additional preview pages of the UTC-2321 datasheet.

📁 Similar Datasheet

UTC-2012 - Thin-Film Cascadable Amplifier (Teledyne Cougar)

UTC-1044 - Thin Film Cascadable AMplifier (Agilent Technologies)

UTC-3216-421N - Gas Discharge Tube (Unictron)

UTC-546 - Thin-Film Cascadable Amplifier (teledyne cougar)

UTC1018 - FM IF SYSTEM (YOUWANG)

UTC1031 - TV Vertical Deflection System (Hangzhou Silan Microelectronics)

UTC1044 - Thin Film Cascadable AMplifier (Agilent Technologies)

UTC1062 - Low Voltage Telephone Transmission Circuit (Hangzhou Silan Microelectronics)

UTC1062A - Low Voltage Telephone Transmission Circuit (Hangzhou Silan Microelectronics)

UTC1117 - 1A LOW DROPOUT POSITIVE VOLTAGE REGULATOR (Hangzhou Silan Microelectronics)

Full PDF Text Transcription

Click to expand full text

Thin-Film Cascadable Amplifier 1700 to 2300 MHz Technical Data UTO/UTC 2321 Series Features • Frequency Range: 1700 to 2300 MHz • Medium Gain: 15.0 dB (Typ) • Medium Output Power: +12.0 dBm (Typ) • Temperature Compensated Applications • IF/RF Amplification • Telemetry • Military Communications Description The 2321 Series is a two-stage thin-film bipolar RF amplifier using resistive feedback and active bias or temperature compensation and increased Immunity to bias voltage variations. Input/ output blocking capacitors couple RF through the amplifier while a low VSWR Is maintained through inductive tuning. The 2321 Series amplifiers are available in either the TO-8 hermetic case or connectored TC-1A package.
