78Q8430 Datasheet - Teridian Semiconductor

78Q8430 10/100 Ethernet MAC and PHY

The Teridian 78Q8430 is a 10/100 Fast Ethernet controller supporting multi-media offload. The device is optimized for host processor offloading and throughput enhancements for demanding multi-media applications found in Set Top Box, IP Video and Broadband Media Appliance applications. The 78Q8430 se.

78Q8430 Features

* include IEEE802.3x flow control and full IEEE802.3 and 802.3u standards compliance. Supporting 10Base-T and 100Base-TX, the transceiver provides Auto MDI-X cable cross-over correction, AUTO Negotiation, Link Configuration and full/half duplex support with full duplex flow control. The line interface

78Q8430_TeridianSemiconductor.pdf

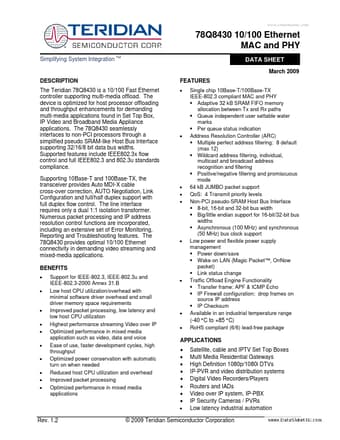

Preview of 78Q8430 PDF
78Q8430 Datasheet Preview Page 2 78Q8430 Datasheet Preview Page 3

Datasheet Details

Part number:

78Q8430

Manufacturer:

Teridian Semiconductor

File Size:

2.89 MB

Description:

10/100 ethernet mac and phy.
