MC65F103B Datasheet - Thermometrics

MC65F103B, INSULATED LEAD INTERCHANGEABLE CHIP THERMISTOR

NTC THERMISTORS: TYPE MC65 INSULATED LEAD INTERCHANGEABLE CHIP THERMISTOR .
Epoxy Coated interchangeable chip thermistors with heavy isomid insulated Nickel lead-wires. Precision, solid state temperature.

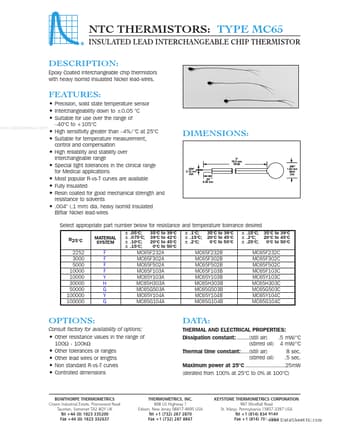

datasheet Preview Page 1 from Datasheet4u.com

MC65F103B_Thermometrics.pdf

MC65F103B Datasheet Preview — Preview of MC65F103B PDF

Datasheet Details

Part number:

MC65F103B

Manufacturer:

Thermometrics

File Size:

159.99 KB

Description:

INSULATED LEAD INTERCHANGEABLE CHIP THERMISTOR

Features

* Precision, solid state temperature sensor
* Interchangeability down to ±0.05 °C
* Suitable for use over the range of
* 40°C to +105°C www. DataSheet4U. com
* High sensitivity greater than
* 4% / °C at 25°C
* Suitable for temperature measurement,

Applications

* Most popular R-vs-T curves are available
* Fully insulated
* Resin coated for good mechanical strength and resistance to solvents
* .004" (.1 mm) dia. heavy isomid insulated Bifilar Nickel lead-wires DIMENSIONS: Select appropriate part number below for resistance
