1SMA4744, 1SMA4728, 1.0 Watt Surface Mount Type Silicon Zener Diodes

1SMA4728 thru 1SMA4764 ® Pb Free Plating Product 1SMA4728 thru 1SMA4764 Pb 1.0 Watt Surface Mount Type Silicon Zener Diodes (3.3Volt thru 100Volt.

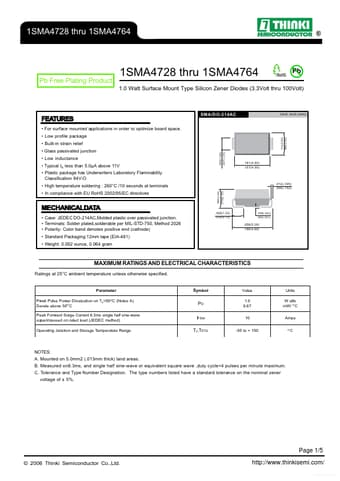

datasheet Preview Page 1 from Datasheet4u.com

1SMA4728_ThinkiSemiconductor.pdf

1SMA4744 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1SMA4744, 1SMA4728. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1SMA4744, 1SMA4728

Manufacturer:

Thinki Semiconductor

File Size:

591.07 KB

Description:

1.0 Watt Surface Mount Type Silicon Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: 1SMA4744, 1SMA4728.
Please refer to the document for exact specifications by model.

Applications

* in order to optimize board space.
* Built-in strain relief
* Low inductance
* Typical IR less than 5.0µA above 11V
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* High temperature soldering : 260°C /10 seconds at terminals
