70HF120 - 70A/1200V Metal Stud Type Rectifier Diodes

Thinki Semiconductor

Datasheet Details

Part number	70HF120
Manufacturer	Thinki Semiconductor
File Size	946.52 KB
Description	70A/1200V Metal Stud Type Rectifier Diodes
Datasheet	70HF120 Datasheet
Additional preview pages of the 70HF120 datasheet.

📁 Similar Datasheet

70HF120 - Standard Recovery Diode (INCHANGE)
70HF120 - POWER RECTIFIER (GOOD-ARK Electronics)
70HF120 - Silicon Power Diode (Naina)
70HF120 - Standard Recovery Diodes (Vishay)
70HF120 - STANDARD RECOVERY DIODES (International Rectifier)
70HF120 - STANDARD RECOVERY DIODES (Digitron Semiconductors)
70HF120M - POWER RECTIFIER (GOOD-ARK Electronics)
70HF120M - Silicon Power Diode (Naina)
70HF10 - POWER RECTIFIER (GOOD-ARK Electronics)
70HF10 - Silicon Power Diode (Naina)

Other Datasheets by Thinki Semiconductor

70HFR120 - 70A/1200V Metal Stud Type Rectifier Diodes

Full PDF Text Transcription

Click to expand full text

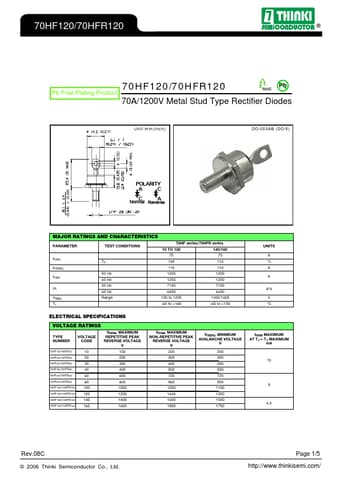

70HF120/70HFR120 70HF120/70HFR120 Pb Pb Free Plating Product 70A/1200V Metal Stud Type Rectifier Diodes Unit:mm(inch) DO-203AB (DO-5) POLARITY AC NormCal A Reverse MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS 70HF series/70HFR series 10 TO 120 140/160 IF(AV) IF(RMS) IFSM TC 50 Hz 60 Hz 70 140 110 1200 1250 70 110 110 1200 1250 50 Hz I2t 60 Hz 7100 6450 7100 6450 VRRM TJ Range 100 to 1200 -65 to +180 1400/1600 -65 to +150 UNITS A °C A A A2s V °C ELECTRICAL SPECIFICATIONS VOLTAGE RATINGS TYPE NUMBER VOLTAGE CODE VRRM, MAXIMUM REPETITIVE PEAK REVERSE VOLTAGE V 70HF10/70HFR10 10 100 70HF20/70HFR20 20 200 70HF30/70HFR30 30 300 70HF40/70HFR40 40 400 70HF60/70HFR60 60 600 70HF80/70HFR80 80 800 70HF100/70HFR100 100 1000 70HF120/
