FMU24S, FMU22S - 10.0 Ampere Dual Unipolar/Common Cathode Polarity Ultrafast Recovery Diode

Thinki Semiconductor

Datasheet Details

Part number: FMU24S, FMU22S
Manufacturer: Thinki Semiconductor
File Size: 260.67 KB

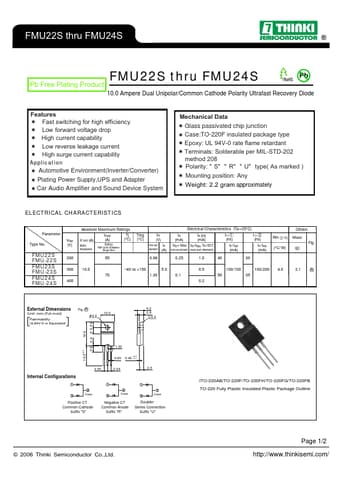

Datasheet: FMU22S-ThinkiSemiconductor.pdf
Description: 10.0 Ampere Dual Unipolar/Common Cathode Polarity Ultrafast Recovery Diode
Note: This datasheet PDF includes multiple part numbers: FMU24S, FMU22S.
Please refer to the document for exact specifications by model.

Fast switching for high efficiency Low forward voltage drop High current capability Low reverse leakage current High surge current capability Application Automotive Environment(Inverter/Converter) Plating Power Supply,UPS and Adapter Car Audio Amplifier and Sound Device System Mechanical Data Glass passivated chip junction Case:TO-220F insulated package type Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202 method 208 Polarity: "S" "R" "U" type( As marked ) Mounting pos.
