GF3050MG, GF3035MG, 30.0 Ampere Surface Mount PhotoVoltaic Bypass Schottky Barrier Rectifier

GF3035MG thru GF30200MG ® Pb Free Plating Product GF3035MG thru GF30200MG Pb 30.0 Ampere Surface Mount PhotoVoltaic Bypass Schottky Barrier Recti.

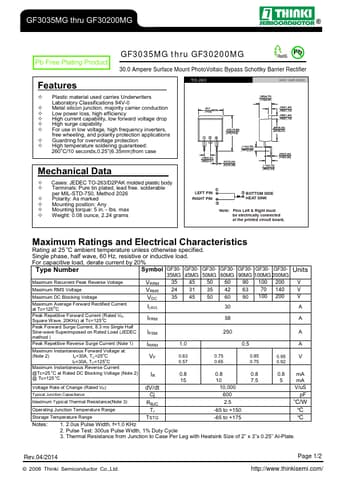

datasheet Preview Page 1 from Datasheet4u.com

GF3035MG-ThinkiSemiconductor.pdf

GF3050MG Datasheet Preview — This datasheet PDF includes multiple part numbers: GF3050MG, GF3035MG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GF3050MG, GF3035MG

Manufacturer:

Thinki Semiconductor

File Size:

335.01 KB

Description:

30.0 Ampere Surface Mount PhotoVoltaic Bypass Schottky Barrier Rectifier

Note:

This datasheet PDF includes multiple part numbers: GF3050MG, GF3035MG.
Please refer to the document for exact specifications by model.

Features

* TO-263 Unit : inch (mm) Plastic material used carries Underwriters Laboratory Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage, high frequency in

Applications

* Guardring for overvoltage protection High temperature soldering guaranteed: 260oC/10 seconds,0.25”(6.35mm)from case Mechanical Data Cases: JEDEC TO-263/D2PAK molded plastic body Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting position: Any
