IRFZ44
®
Pb Free Plating Product
IRFZ44
Pb
45 Ampere Typical N-Channel Trench Power MOSFETs
General Description
The IRFZ44 is N-channel MOS Field Effect Transistor designed for high current switching applications. Rugged EAS capability and ultra low RDS(ON) is suitable for PWM.
Features
● VDS=60V；ID=45A@ VGS=10V； RDS(ON)<7.5mΩ @ VGS=10V
● Ultra Low On-Resistance ● High UIS and UIS 100% Test
Application
● Hard Switched and High Frequency Circuits ● Uninterruptible Power Supply
G DS TO-251 Top View
Schematic Diagram
VDSS = 60 V IDSS = 45 A RDS(ON) = 6.0 mΩ
Table 1.

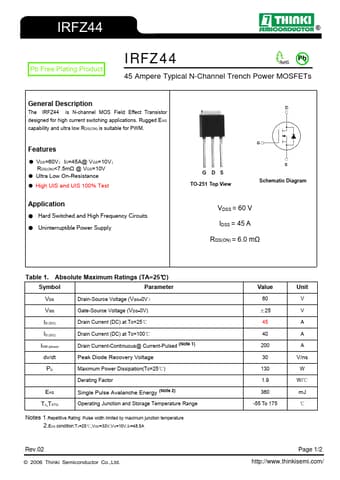

IRFZ44 Datasheet
