MB4S 0.8 Amp Surface Mount Single Phase Bridge Rectifiers

MB4S Description

MB05S thru MB13S ® Pb Free Plating Product MB05S thru MB13S Pb 0.8 Amp Surface Mount Single Phase Bridge Rectifiers MD S Unit: inch(mm) Featur.

MB4S Features

* .275(7)MAX .193(4.9) .177(4.5) ‹ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ‹ Glass passivated chip junctions ‹ High surge overload rating: 35A peak ‹ Saves space on printed circuit boards ‹ High temperature soldering guaranteed: 260oC/10 seconds. .106(2.7) .09

📥 Download Datasheet

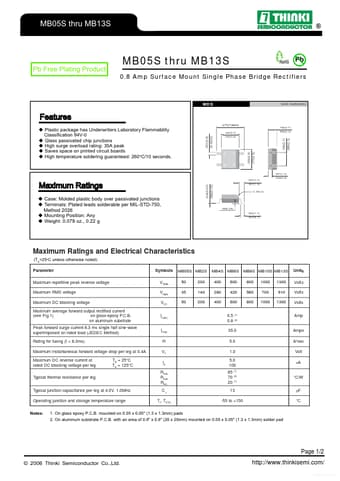

Preview of MB4S PDF
datasheet Preview Page 2

Datasheet Details

Part number
MB4S
Manufacturer
Thinki Semiconductor
File Size
323.92 KB
Datasheet
MB4S_ThinkiSemiconductor.pdf
Description
0.8 Amp Surface Mount Single Phase Bridge Rectifiers
